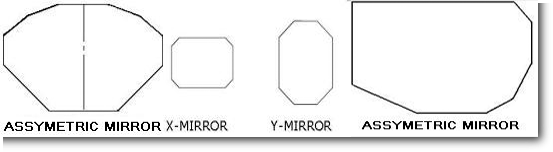

Scanning mirrors are used for high speed two-axis laser scanner system. The dimension of each mirror have been calculated to allow for scanning of a laser beam at up to 25 degrees off-axis. The mirrors have high reflectivity and so may be safe at high powers.

Specifications

1. Flatness: ?/4 @633nm, Scratch/Dig: 40/20, Reflective coating:1-sided
2. Silicon, Gold or Silver coating for CO2 Laser (10.6um)
3. Si/BK7/FS, Dielectric or Silver coating for Nd:YAG Laser (1064nm/650nm/532nm)
4. Si/BK7/FS, Dielectric coating for Green & Visible Laser (650nm/355nm)
5. Mounted scanning mirror are available upon request
6. Wavelength: 10.6um/1064nm/532nm/355nm

Scanning Mirror Product Details
