PRISM

There are many types of Prism, each having a particular geometry to achieve the desired reflections necessary to perform a specific imaging task. Reflecting prisms may invert, rotate, deviate or displace a beam. Dispersing prisms produce spectral separation for spectroscopic applications or for tuning a laser output.

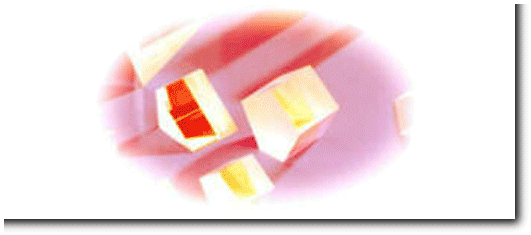

We provides many kinds of high precision prisms, including Penta Prism, Beamsplitter Penta Prism, Right Angle Prism, and Corner Cube. Our micro Penta Prism and Right Angle Prism are widely used in optical communication, such as optical switches. Dove Prism and Roof Prism are also available upon request.


Specification


  • Materials
  • Surface Flatness
  • Angle
  • Clear Aperture Diameter
  • Surface Quality
  • BK 7, fine annealed
  • 1/4
  • 45°, 90°± 3' or ± 30"
  • 90%
  • 60-40 scractch and dig


Dimension (mm)
Part No.

A=B=C

± 3'
± 30"

5.0

WCL-030104
WCL-030104A

10.0

WCL-030105
WCL-030105A

12.7

WCL-030101
WCL-030101A

20.0

WCL-030106
WCL-030106A

25.4

WCL-030102
WCL-030102A

30.0

WCL-030107
WCL-030107A

40.0

WCL-030108
WCL-030108A

50.8

WCL-030103
WCL-030103A
