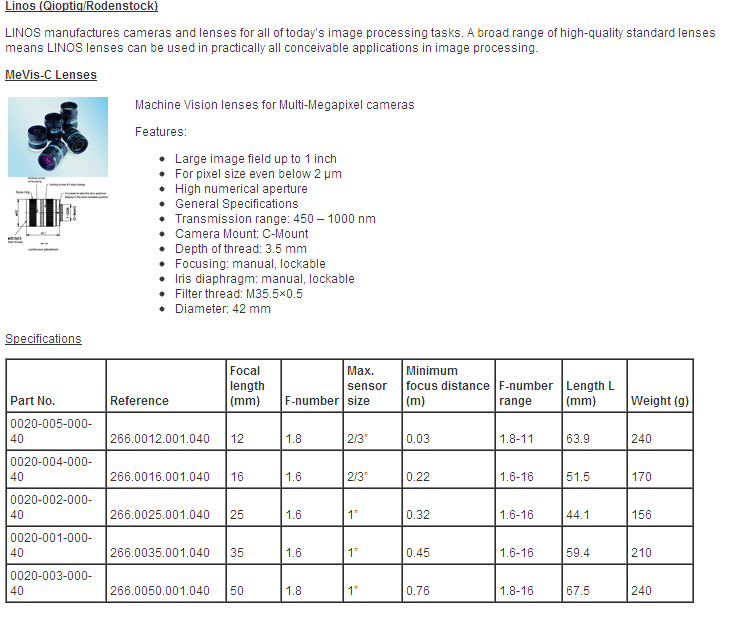

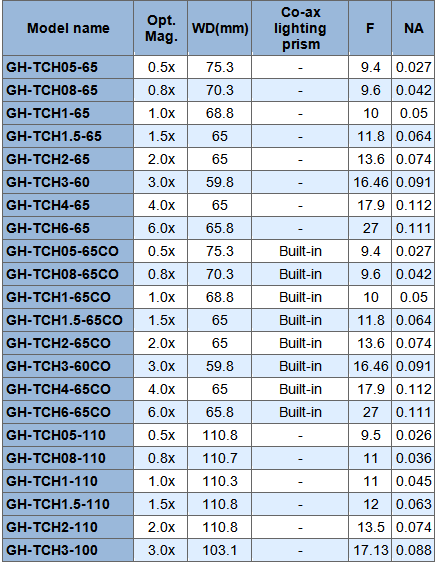

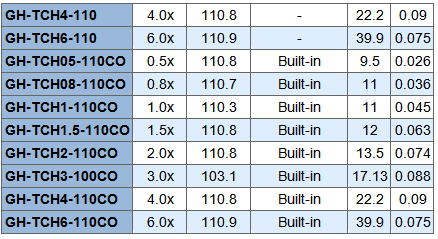

Telecentric Machine Vision lens has parallel chief rays with its optical axis and is ideal for co-axial lighting. Telecentric lens eliminates perspective error in your image, which gives you no magnification change when the distance between object and lens (WD) changed. This allows you accurate measurement of 3D object or even the object is moving up and down.
For more detail you can download: Machine Vision catalog.
TECHNICAL DATA OF THE LENSES - TABLE 1 |
|
1 |
Lens |
2 |
Max. recommended film size |
3 |
Recommended scale (optimal) |
4 |
Lowest aperture |
5 |
Pre-selection aperture |
6 |
Click-stop disable |
7 |
Illuminated stop display |
8 |
Filter thread, mm |
9 |
Flange focal length at infinity, mm |
10 |
Overal length, mm |
11 |
Maximum lens diameter, mm |
12 |
Screw thread, mm |
13 |
Contact area to rear edge, mm |
(to get a tip move the mouse pointer to column number) |
|
Rogonar |
||||||||||||
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
50 mm f/2,8 |
24x36mm |
2-8x (4x) |
16 |
|
|
+ |
- |
38,0 |
32,0 |
42,0 |
39,0 |
6,5 |
75 mm f/4,5 |
6x6cm |
2-6x (4x) |
16 |
|
|
+ |
- |
63,1 |
32,0 |
42,0 |
39,0 |
6,5 |
Rogonar-S |
||||||||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
25 mm f/4,0 |
13x17mm |
10-30x (20x) |
16 |
|
|
|
30,5 |
23,0 |
28,0 |
40,5 |
32,5 |
4,5 |
35 mm f/4,0 |
18x24mm |
10-30x (20x) |
16 |
|
|
|
30,5 |
34,0 |
28,0 |
40,5 |
32,5 |
4,5 |
50 mm f/2,8 |
24x36mm |
2-10x (4x) |
16 |
+ |
+ |
+ |
40,5 |
47,0 |
37,5 |
50,0 |
39 |
6,5 |
60 mm f/4,5 |
40x40mm |
2-10x (4x) |
22 |
+ |
+ |
+ |
40,5 |
52,5 |
36,5 |
50,0 |
39 |
5,9 |
75 mm f/4,5 |
6x6cm |
2-10x (4x) |
22 |
+ |
+ |
+ |
40,5 |
65,5 |
36,5 |
50,0 |
39 |
5,9 |
90 mm f/4,5 |
6x7cm |
2-8x (4x) |
22 |
+ |
+ |
+ |
40,5 |
80,0 |
36,5 |
50,0 |
39 |
5,9 |
105 mm f/4,5 |
6x9cm |
2-8x (4x) |
22 |
+ |
+ |
+ |
40,5 |
95,0 |
36,5 |
50,0 |
39 |
5,9 |
135 mm f/4,5 |
9x12cm/4x5" |
2-6x (4x) |
32 |
|
|
+ |
52 |
129,5 |
38,0 |
60,0 |
50 |
11,3 |
150 mm f/4,5 |
9x12cm/4x5" |
2-6x (4x) |
32 |
|
|
+ |
52 |
138,0 |
36,8 |
60,0 |
50 |
9,8 |
Rodagon |
||||||||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
28 mm f/4,0 |
18x24mm |
5-30x (20x) |
16 |
|
|
|
30,5 |
27,7 |
30,0 |
40,5 |
32,5 |
6,7 |
35 mm f/4,0 |
24x24mm |
5-30x (20x) |
16 |
|
|
|
30,5 |
35,6 |
32,5 |
40,5 |
32,5 |
9,0 |
50 mm f/2,8 |
24x36mm |
2-15x (10x) |
16 |
+ |
+ |
+ |
40,5 |
43,5 |
43,5 |
50,0 |
39,0 |
13,0 |
60 mm f/4,0 |
40x40mm |
2-10x (10x) |
22 |
+ |
+ |
+ |
40,5 |
56,0 |
41,0 |
50,0 |
39,0 |
10,0 |
80 mm f/4,0 |
6x7cm |
2-10x (6x) |
22 |
+ |
+ |
+ |
40,5 |
74,7 |
44,5 |
50,0 |
39,0 |
13,5 |
105 mm f/5,6 |
6x9cm |
2-10x (6x) |
32 |
+ |
+ |
+ |
40,5 |
99,5 |
41,0 |
50,0 |
39,0 |
10,5 |
135 mm f/5,6 |
9x12cm/4x5" |
2-10x (6x) |
32 |
+ |
+ |
+ |
40,5 |
128,0 |
45,5 |
50,0 |
39,0 |
14,5 |
150 mm f/5,6 |
9x12cm/4x5" |
2-10x (6x) |
45 |
|
|
+ |
52,0 |
146,0 |
49,8 |
60,0 |
50,0 |
20,1 |
180 mm f/5,6 |
13x18cm/5x7" |
2-8x (5x) |
45 |
|
|
+ |
58,0 |
177,0 |
59,8 |
60,0 |
50,0 |
24,6 |
210 mm f/5,6 |
13x18cm/5x7" |
2-8x (4x) |
45 |
|
|
+ |
67,0 |
201,0 |
67,2 |
70,0 |
58,0 |
28,1 |
240 mm f/5,6 |
18x24/8x10" |
2-8x (4x) |
45 |
|
|
+ |
77,0 |
230,0 |
77,0 |
80,0 |
72,0 |
30,0 |
300 mm f/5,6 |
18x24/8x10" |
2-8x (4x) |
45 |
|
|
+ |
86,0 |
283,0 |
93,0 |
90,0 |
72,0 |
8,5 |
360 mm f/6,3 |
24x30/10x12" |
2-8x (2,5x) |
45 |
|
|
+ |
95,0 |
300,0 |
110,6 |
100,0 |
90,0 |
9,5 |
Apo-Rodagon-N |
||||||||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
50 mm f/2,8 |
24x36mm |
2-20x (10x) |
16 |
+ |
+ |
+ |
40,5 |
46,0 |
46,5 |
50,0 |
39,0 |
15,7 |
80 mm f/4,0 |
6x7cm |
2-15x (10x) |
22 |
+ |
+ |
+ |
40,5 |
77,0 |
43,0 |
50,0 |
39,0 |
12,2 |
105 mm f/4,0 |
6x9cm |
2-15x (6x) |
22 |
+ |
+ |
+ |
40,5 |
99,1 |
54,3 |
50,0 |
39,0 |
18,0 |
150 mm f/4,0 |
9x12cm/4x5" |
2-15x (6x) |
32 |
|
|
+ |
67,0 |
144,5 |
78,2 |
70,0 |
50,0 |
28,8 |
Rodagon-WA |
||||||||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
40 mm f/4,0 |
24x36mm |
4-20x (10x) |
22 |
+ |
+ |
+ |
40,5 |
36,5 |
37,2 |
50,0 |
39,0 |
6,5 |
60 mm f/4,0 |
6x7cm |
4-15x (8x) |
22 |
+ |
+ |
+ |
40,5 |
55,5 |
41,0 |
50,0 |
39,0 |
10,0 |
80 mm f/4,0 |
6x9cm |
4-15x (8x) |
22 |
+ |
+ |
+ |
40,5 |
77,0 |
44,0 |
50,0 |
39,0 |
13,0 |
120 mm f/5,6 |
9x12cm/4x5" |
4-15x (6x) |
45 |
|
|
+ |
52,0 |
116,4 |
59,0 |
60,0 |
50,0 |
26,6 |
Rodagon-G |
||||||||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
50 mm f/2,8 |
24x36mm |
15-50x (25x) |
16 |
+ |
+ |
+ |
40,5 |
47,0 |
45,0 |
50,0 |
39,0 |
14,0 |
105 mm f/5,6 |
6x9cm |
10-40x (20x) |
45 |
|
|
+ |
40,5 |
100,3 |
38,0 |
60,0 |
50,0 |
14,3 |
150 mm f/5,6 |
9x12cm/4x5" |
10-40x (20x) |
45 |
|
|
+ |
49,0 |
141,8 |
50,6 |
60,0 |
50,0 |
20,5 |
210 mm f/5,6 |
13x18cm/5x7" |
8-30x (20x) |
45 |
|
|
+ |
67,0 |
179,5 |
65,9 |
74,5 |
72,0 |
8,5 |
240 mm f/5,6 |
13x18cm/5x7" |
8-30x (20x) |
45 |
|
|
+ |
77,0 |
230,6 |
76,9 |
80,0 |
72,0 |
32,2 |
300 mm f/5,6 |
18x24/8x10" |
8-30x (20x) |
45 |
|
|
+ |
86,0 |
253,3 |
93,5 |
93,5 |
90,0 |
11,5 |
360 mm f/6,8 |
18x24/8x10" |
8-30x (20x) |
45 |
|
|
+ |
105,0 |
304,2 |
116,5 |
110,0 |
90,0 |
12,2 |
480 mm f/8,4 |
24x30/10x12" |
8-30x (20x) |
64 |
|
|
+ |
112,0 |
412,0 |
146,8 |
115,0 |
110,0 |
17,7 |
Apo-Rodagon-D |
||||||||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
75 mm f/4,0 |
6x6cm |
0,9-1,2 (1x) |
22 |
+ |
+ |
|
40,5 |
136,7 (1:1) |
53 0 |
50,0 |
39,0 |
18,7 |
24x36mm |
0,7-1,5x (1x) |
|||||||||||
120 mm f/5,6 |
|
0,5-3x (2x) |
|
|
|
|
|
|
|
|
|
|
| Part No. | Lens | Aperture ratio | Focal length (mm) | Lens length c (mm) | Max. Lens Ø without flange d (mm) | Thread e | Filter thread a | Surface- focal plane distance to the rear g (mm) |
Image circle Ø at 1: ∞ and fully open diaphragm (mm) |
| 0801-272-000-20 | Rogonar-S | 01:04.0 | 25 | 28 | 40.5 | M 32.5 x 0.5“2) | M 30.5 x 0.5 | 4.5 | 18 |
| 0801-273-000-20 | Rogonar-S | 01:04.0 | 25 | 28 | 40.5 | M 32.5 x 0.5“2) | M 30.5 x 0.5 | 4.5 | 18 |
| 0801-364-000-40 | Rogonar-S | 01:02.8 | 50 | 37.5 | 50 | M 39 x 1/26“ | M 40.5 x 0.5 | 6.5 | 35 |
| 0801-324-000-40 | Rogonar-S | 01:04.5 | 60 | 36.5 | 50 | M 39 x 1/26“ | M 40.5 x 0.5 | 5.9 | 45 |
| 0801-325-000-40 | Rogonar-S | 01:04.5 | 75 | 36.5 | 50 | M 39 x 1/26“ | M 40.5 x 0.5 | 5.9 | 55 |
| 0801-326-000-40 | Rogonar-S | 01:04.5 | 90 | 36.5 | 50 | M 39 x 1/26“ | M 40.5 x 0.5 | 5.9 | 65 |
| 0801-327-000-40 | Rogonar-S | 01:04.5 | 105 | 36.5 | 50 | M 39 x 1/26“ | M 40.5 x 0.5 | 5.9 | 75 |
| 0701-358-000-20 | Rodagon | 01:04.0 | 28 | 30 | 40.5 | M 32.5 x 0.5“2) | M 30.5 x 0.5 | 6.7 | 25 |
| 0701-357-000-20 | Rodagon | 01:04.0 | 35 | 32.5 | 40.5 | M 39 x 1/26“ | M 40.5 x 0.5 | 9 | 30 |
| 0701-345-000-40 | Rodagon | 01:02.8 | 50 | 43.5 | 501) | M 39 x 1/26“ | M 40.5 x 0.5 | 13 | 40 |
| 0701-393-000-40 | Rodagon | 01:04.0 | 60 | 41 | 501) | M 39 x 1/26“ | M 40.5 x 0.5 | 10 | 50 |
| 0701-391-000-40 | Rodagon | 01:04.0 | 80 | 44.5 | 501) | M 39 x 1/26“ | M 40.5 x 0.5 | 13.5 | 65 |
| 0701-394-000-40 | Rodagon | 01:05.6 | 105 | 41 | 501) | M 39 x 1/26“ | M 40.5 x 0.5 | 10.5 | 80 |
| 0701-398-000-40 | Rodagon | 01:05.6 | 135 | 43.1 | 501) | M 39 x 1/26“ | M 40.5 x 0.5 | 12.4 | 174 |
| 0701-399-000-40 | Rodagon-WA | 01:04.0 | 40 | 37.2 | 501) | M 39 x 1/26“ | M 40.5 x 0.5 | 6.5 | 35 |
| 0701-276-000-40 | Rodagon-WA | 01:04.0 | 60 | 41 | 501) | M 39 x 1/26“ | M 40.5 x 0.5 | 10 | 55 |
| 0701-277-000-40 | Rodagon-WA | 01:04.0 | 80 | 44 | 501) | M 39 x 1/26“ | M 40.5 x 0.5 | 13 | 75 |
| 0701-349-000-40 | Apo-Rodagon-N | 01:02.8 | 50 | 46.5 | 501) | M 39 x 1/26“ | M 40.5 x 0.5 | 15.7 | 40 |
| 0703-092-000-40 | Apo-Rodagon-N | 01:04.0 | 80 | 43 | 501) | M 39 x 1/26“ | M 40.5 x 0.5 | 12.2 | 70 |
| 0703-019-000-40 | Apo-Rodagon-N | 01:05.6 | 105 | 54.3 | 501) | M 39 x 1/26“ | M 40.5 x 0.5 | 18 | 80 |
