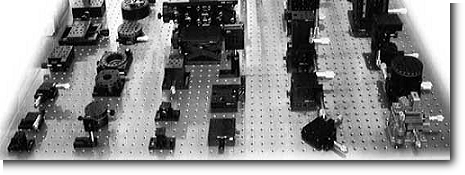

Manual Stages

Manual stages is used to adjust free degree of translation , vertical , rotation. suitable for low automation and low frequency application. we specialized in stages series including : translation stages.vertical stages,rotation stages,tilting stages,goniometer stages.

For More Detail You Can Download Manual Mount Catalog.







Specification


Manual Rotational Stage

Model
RSM56-1
RSM73-1

Table Dimension φ(mm)

56
73

Drive mechanicsm

Fine Adjust Screw
Fine Adjust Screw

Diameter

φ26
M27

Table Hole Patten

M4
M6,M4

Travel:Coarse

360°
360°

Travel:Fine

±3°

Resolution Readable

Resolution

0.2°
5'

Weight

0.15Kg
0.35Kg

Load Capacity

2Kg
5Kg

Side Hole Patten

M4
M6
