Beam Shaper

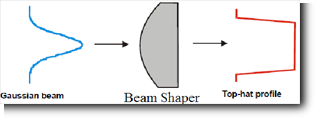

Beam Shaper is used in many applications where user want uniform beam in form of Top Hat profile instead of Gaussian beam. This is best optical component ever used to change profile. It is an afocal system which is demanding product in laser industry. We will provide Beam shaper from visible range to IR range.

The design is based on transmissive model that can be used with maximum input beam size of 4.6mm and 6mm. Currently, we have available design from 266-1064 nm, 10.6um wavelength.

Application Area :




Beam Shaper with shorter working distance up to 200mm


Part No.
Wavelength
Applicable Input Beam Size (mm)
Output Beam Size (mm)
Max. outer Dia (mm)
Total Length (mm)
Working Distance (mm)

BS

1064/532/355/266
4.6-5
6
27
170.7
25-200

BS-W600 Series Beam Shaper


BS-W600 series of beam shaper is developed for longer working distance up to 600m


Part No.
Wavelength
Applicable Input Beam Size (mm)
Output Beam Size (mm)
Max. outer Dia (mm)
Total Length (mm)
Working Distance (mm)

BS- W600

1064/532/355
5.8-6
5-5.5
30
175.53
100-600

BS-10.6


Part No.
Wavelength
Applicable Input Beam Size (mm)
Output Beam Size (mm)
Max. outer Dia (mm)
Total Length (mm)
Working Distance (mm)

BS-10.6-3

9.4/10.6/11
3-4
3-4
28
109
25-100

BS-10.6-12

9.4/10.6/11
12
12
38
270
25-200
