Motorized Stages

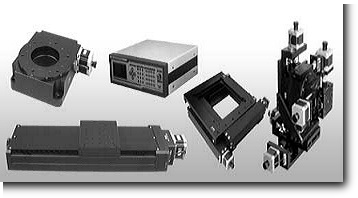

High-precision motorized translation stages has adopted newly structure,newly crafts ,the key index is up to the international level of similar products by rigid inspection. Standard rotation has adopted ball screw,precision rotation has adopted grinding ball screw;Slide has adopted linear bearing,elastic couplings with high-quality products of importing ,ensure the machine quality.

Application such as: Femetosecond Laser Experiment, Laser Precision Processing,Three-Dimensional Scanning Measured System & so on.

For More Detail You Can Download Motorized Stage Catalog.







Specification


ROTATION STAGE

Model
RSA60
RSA100
RSA200
RSA400

Rotation ratio

90:1
180:1
180:1
720:1

Relsolution (8 subdivision)

0.0025°
0.00125°
0.00125°
0.0003125°

Max speed(Deg./sec)

50
25
25
5

Repeatability

<0.01°
<0.005°
<0.005°
<0.003°

Stepper motor

42(1.8°)
42(1.8°)
57(1.8°)
57(1.8°)

Working current(A)

1.7
1.7
2.4
2.4

Max center load(kg)

30
50
60
80

Weight (kg)

1
1.54
7.7
19.75


Translation Stage



Model
KSA050-13-X
KSA100-13-X
KSA200-13-X
KSA300-13-X
KSA400-13-X

Travel range(mm)

50
100
200
300
400

Drive screw pitch (mm)

4
4
4
4
5

Closed-loop resolution(µm)

1
1
1
1
1

Open-loop resolution(µm)

2.5
2.5
2.5
2.5
3.125

Max speed(mm/sec)

40
40
40
40
50

Repeatability(µm)

<3
<3
<3
<3
<3

Backlash (µm)

<5
<5
<5
<5
<5

Yaw (″)

<15
<15
<20
<25
<30

Pitch (″)

<15
<15
<25
<30
<40

Straightness(µm)

10
10
12
15
20

Flatness (µm)

10
10
12
15
20

Stepper motor(angle)

42BYGH (1.8°)
42BYGH (1.8°)
42BYGH (1.8°)
57BYGH (1.8°)
57BYGH (1.8°)

Working current(A)

1.7
1.7
2.4
2.4
2.4
